ULTIMATE PROTECTION. LASTING PERFORMANCE.
25.000,00 EGP
FLEX FIRE+ TPU-M75 is a premium Paint Protection Film engineered to provide reliable protection for automotive paint against everyday road hazards, scratches, UV exposure and environmental elements.
Designed with a high-performance TPU construction and advanced surface coating, TPU-M75 delivers excellent optical clarity, hydrophobic surface performance, heat-repairable properties and strong mechanical performance for long-term paint protection.
High-performance TPU construction designed for automotive paint protection.
The surface coating is designed to repair scratches through heat, delivering a tested 100% repair result under the specified test conditions.
A hydrophobic top surface helps provide water-repellent performance and easier surface maintenance.
Delivers a high-gloss finish with a tested gloss value of 98.5 at 60°.
Provides tested UV rejection of 92.0%, helping reduce UV exposure to the protected paint surface.
Passed the specified QUV ageing resistance test with a criterion of ΔE*ab < 2 after a 2000-hour test duration.
Tested elongation at break of 303.25%, providing flexibility for automotive applications.
Tested tensile strength of 20.33 MPa.
Acrylic layer peeling force tested at 1740 gf/in after 20 minutes and 2223 gf/in after 24 hours.
Demonstrates slight trace under the specified MG-2110 mark-pen test conditions.
| Property | Specification | Test Value | Test Method |
|---|---|---|---|
| Top Film Thickness | 50 ± 2 μm | 52 μm | ASTM D374 |
| Total Product Thickness | 190 ± 10 μm | 190 μm | ASTM D374 |
| Liner Film Thickness | 75 ± 3 μm | 75 μm | ASTM D374 |
| Gloss | — | 98.5 | Gloss Meter @60° |
| UV Rejection | >90% | 92.0% | LS162 Test Meter |
| QUV Ageing Resistance | ΔE*ab < 2 | PASS | ASTM G154-16, Cycle 1 |
| Surface Property | Hydrophobic | Hydrophobic | Water |
| Surface Permeability Resistance | Slight / No Trace | Slight Trace | MG-2110 Mark Pen, 10s After Alcohol Wipe |
| Scratch Repairment | Heat Repairable | 100% | 0.1 mm Copper Brush & Drying Gun |
| Acrylic Peeling Force – 20 min | >600 gf/in | 1740 gf/in | GB/T 2792 |
| Acrylic Peeling Force – 24 h | >1000 gf/in | 2223 gf/in | GB/T 2792 |
| Elongation at Break of Coating | >70% | 135% | GB/T 1040.1 |
| Tensile Strength | >15 MPa | 20.33 MPa | GB/T 1040.1 |
| Elongation at Break | ≥200% | 303.25% | GB/T 1040.1 |
| 100% Modulus | >5 MPa | 6.01 MPa | GB/T 1040.1 |

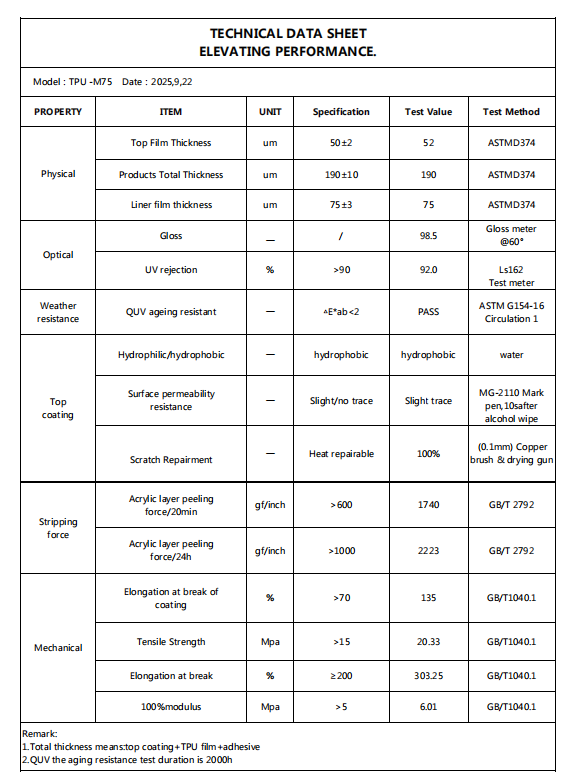

Model: TPU-M75
TDS Date: September 22, 2025
The complete Technical Data Sheet provides detailed product specifications, test values and testing methods for FLEX FIRE+ TPU-M75.
[ DOWNLOAD TDS ]
A premium visual presentation of the TPU-M75 product, packaging, film construction and real-world application.
Additional factory and product images can be added as they become available.
Learn more about FLEX FIRE+ TPU-M75 and its core protection technologies.
Inside the production process and quality-control environment.
An overview of the film construction and surface technology.
Demonstration of the film’s heat-repairable surface performance.
Demonstration of the hydrophobic surface behavior.
Testing and demonstration of the film’s resistance to UV and environmental exposure.
Professional installation process and application techniques.
Real-world and laboratory performance demonstrations.
FLEX FIRE+ TPU-M75 is backed by a 10-Year Warranty designed to provide customers with long-term confidence in their paint protection investment.
Up to 15 Years
Expected product performance/lifetime under appropriate conditions.
10 Years
The official customer warranty period provided by FLEX FIRE+.
ACTIVATE WARRANTY
Register your FLEX FIRE+ product and activate your warranty.
VERIFY WARRANTY
Verify your FLEX FIRE+ warranty information.
